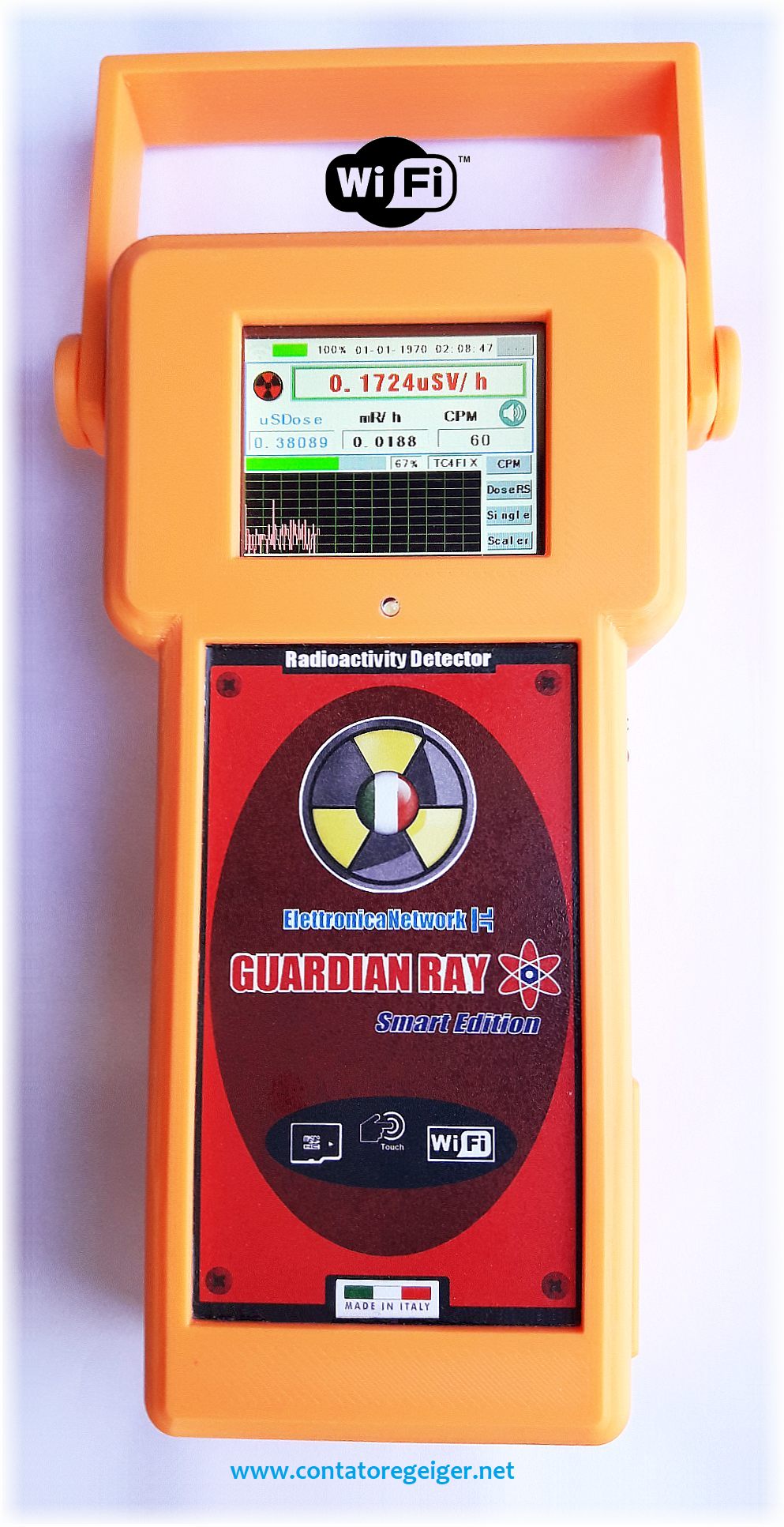

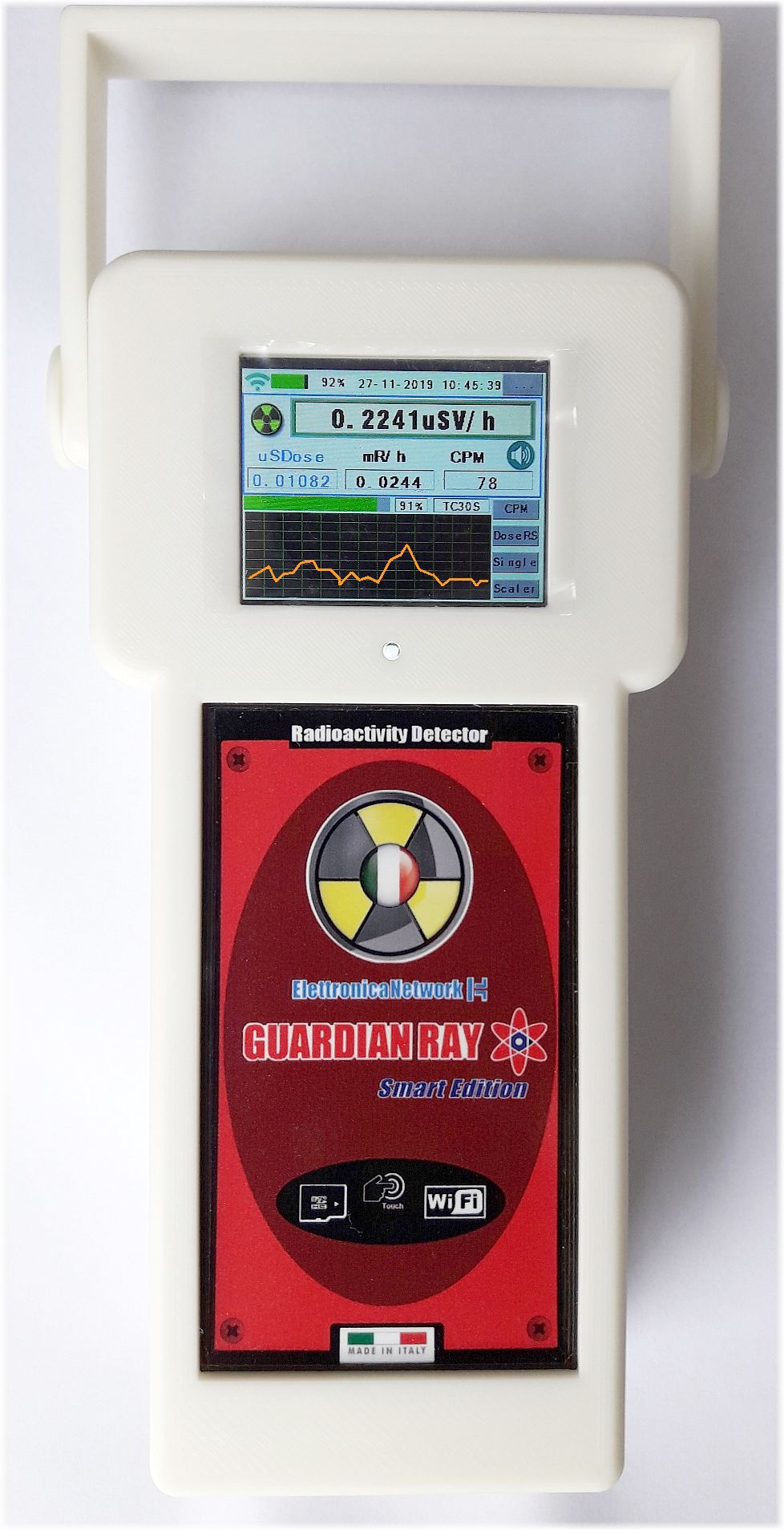

Guardian Ray Smart 2.4p Geiger Counter with SD Pancake Probe and WiFi.

6 Tools in one: WiFi Geiger Counter with 2.4 LCD″ Touch a colori, Rate meter, Http Client, TCP Client, Radioactivity Dosimeter and Datalogger on microSD.

We are happy to present the new edition to you “SMART” of Guardian Ray WiFi with 2.4 inch color LCD Touch and highly sensitive Pancake probe, born from Italian ingenuity and creativity. This new radioactivity detector essentially represents the natural evolution of the previous series ” Plus”.

I.O.T technology. it's in our Geiger Counter.

Guardian Ray Smart con sonda pancake, represents an unprecedented revolution for this category of radioactivity meters for the use of the so-called technology: Internet of Things”, (IOT). which defines smart object devices.

Guardian Ray has become “Smart”

We can connect our instrument via its integrated WiFi module to any local network and also to the internet to automatically update the system date and time and above all to automatically upload the radioactivity data to the Cloud made available by the manufacturer himself or possibly to customer property.

How the Cloud server is used by our Geiger

Cloud servers allow the acquisition of radioactivity data sent over the network by our instruments and for their automatic publication in real time on specific web pages. For example, it would be possible to use our Geiger counter also as a real control unit for the constant monitoring of radioactivity levels.You can click on the link or image below to immediately view the environmental radioactivity data detected by our Geiger in real time in our laboratory in Quartu Sant'Elena (Cagliari).We would like to point out that Guardian Ray Smart also supports double WiFi configuration, that is, it can function as a Client or as an Access Point.

Other ways of storing radioactivity data

Our Geiger Counter allows you to store data collected locally, which will now no longer be allocated to the internal memory, as happened in previous models, instead they will be automatically saved on very practical microSD cards, which despite their very small dimensions allow practically unlimited storage capacity .

Multifunctional Geiger counter

Guardian Ray Smart It can show radioactive activity on the large color display by simultaneously translating it into different units of measurement, that is to say: in microSievert/h, in interRontgen/h, in CPM o in alternativa in CPS, while at the same time it calculates and displays the dose of ionizing radiation to which one is exposed over time.

Ratemeter function

It also works like a real one “Rate-Meter”, allowing in this special mode the execution of very precise measurements with fixed acquisition times, presettable from a minimum of 60 to a maximum of 10,000 seconds.

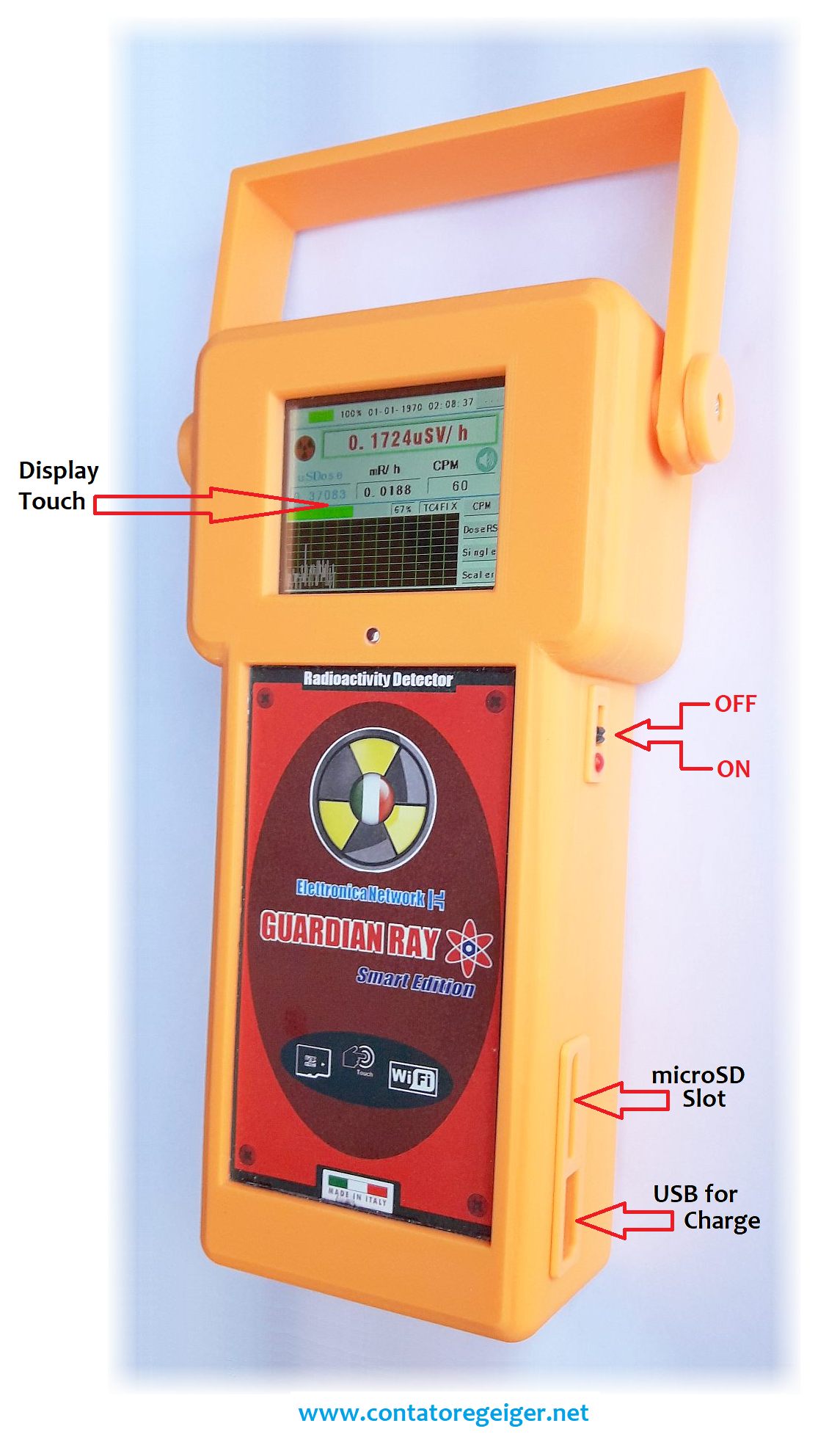

The approach is simple and intuitive thanks to the color Touch display

It disappears “old” membrane keyboard which is now replaced by a modern display “touch” with active color matrix, which in this specific model is 2.4 inches. Guardian Ray Smart con Pancake, furthermore it can be requested in the variants with display da 2.8 and 3.2 inches.

It uses the highly sensitive Geiger Muller Pancake LND7317 probe

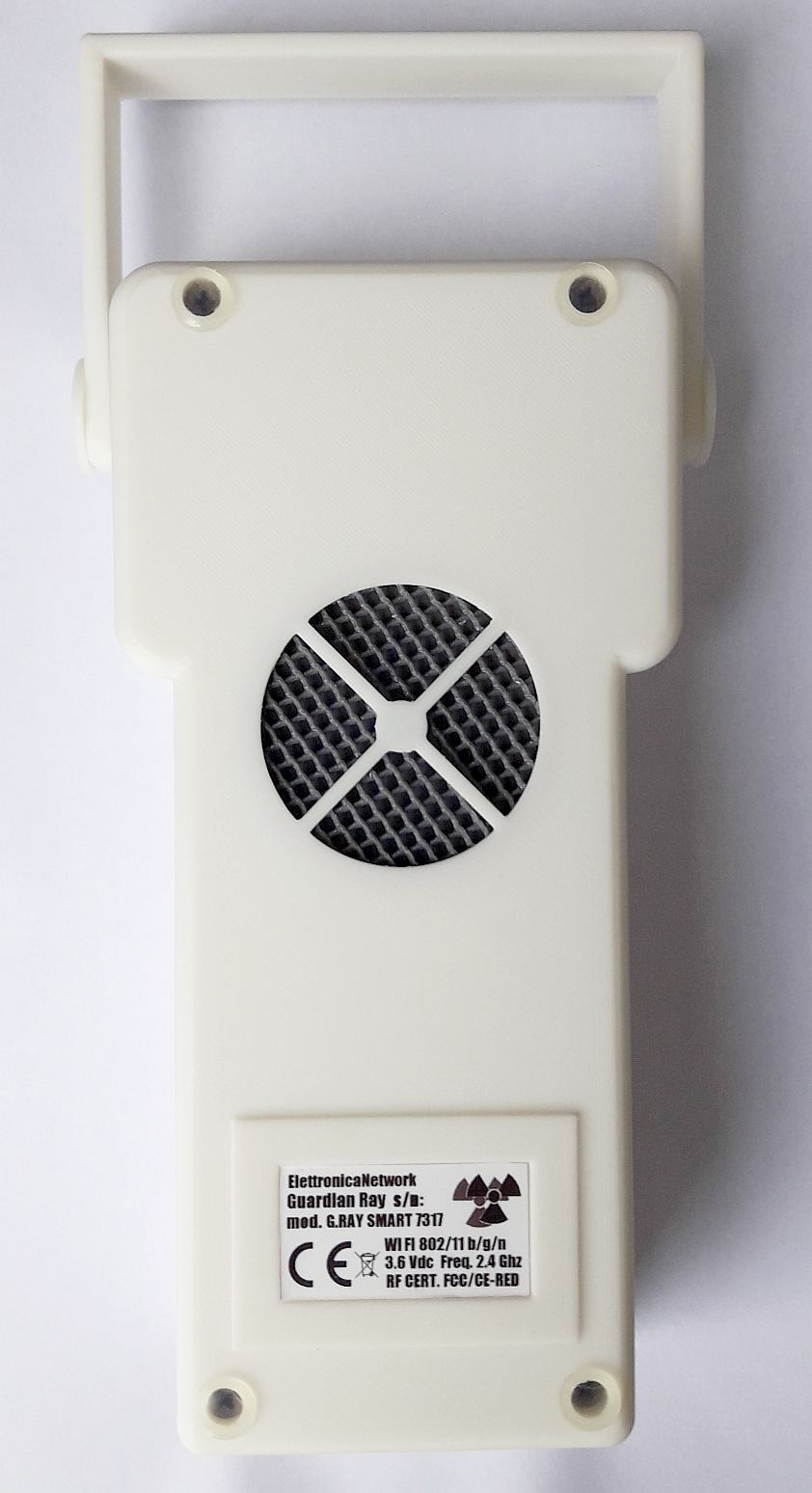

This version also has a particular Geiger Muller type probe installed internally “Pancake”, which in addition to being very sensitive and precise, It has the interesting characteristic of being able to detect all types of ionized radiation, that is to say: the Alphas, and Beta, Gamma and X-rays.The Pancake differs from normal Geiger tubes for its large active surface made up of a thin mica membrane of about 45 mm in diameter. Therefore it is also permeable to Alpha radiation, which due to their corpuscular nature cannot be detected with economical metal or borosilicate probes.

Also available on request with Accredia calibration certificate.

The excellent characteristics of this radioactivity meter can be certified at a major certified national calibration center “ACCREDIA” of our trust valid for the purposes permitted by law. The results of these checks, which we have already had performed in previous series, from which this new model derives, they attest without any uncertainty to the excellence of the performances. Therefore we have no problem defining this new model in the series as one of the best Geiger counters ever produced.

Main features:

Professional Geiger Counter Product, sold, guaranteed and assisted in Italy by the same national manufacturer.Guardian Ray Smart takes advantage of a new and powerful 32-bit microprocessor with form WiFi a 2.4 GHZ integrated and has a multitude of software functions for the acquisition and processing of radioactivity data. among these we mention: the function Radioactivity dosimeter, which automatically calculates the overall radiation dose to which you are exposed in a given period of time, the function: Rate meter, that is, a special measurement mode that significantly increases the sensitivity and precision of acquisition by lengthening the measurement sampling times.It has a software-controlled clock unit with date display that updates automatically when the instrument is connected to the internet, ha the rechargeable lithium battery yes 3.7V, and a broad display Touch, 2.4 backlit″ coloured with active matrix, perfectly readable even outdoors and in the presence of sunlight (not direct).E’ There is also an LED that flashes in the presence of radioactivity and a buzzer which can be enabled and disabled as desired by the operator, which emits a “beep” for each particle detected, but it can also ring insistently if a certain radiation threshold that can be preset at will is exceeded.The USB interface is used exclusively for charging the internal lithium-ion battery.

Who needs our Geiger Counter? ?

Due to its professional characteristics, Guardian Ray Smart 7317 is recommended for qualified radiation protection experts, to public administrations such as municipalities, the local health authorities for the protection of citizens' health and of course the police to conduct health investigations directly in the area.We think it could also be useful in research and analysis laboratories, and in particular to companies that import and process products from countries that have been involved in serious nuclear accidents in the past.Anyone who needs to have a multifunctional radioactivity detector could also find it useful, modern, precise and reliable, capable of ascertaining with sufficient precision the levels of ionizing radiation present in the environment, in the ground, in building materials, on some foodstuffs and in general on any product or personal object.

Specifiche del Geiger Guardian Ray Plus:

 Model: – Guardian Ray 7317 Smart /2.4p Professional Geiger Counter with sensitive Pancake probe made in USA housed internally in the lower part of the instrument.2.4 inch color LCD touch display: – Type 2.4p active matrix color tactile graphic LCD with effective resolution of 320×240 pixelsUnit of measure (all displayed at the same time): – Dose rate in: µSievert /ora, MilliRoentgen/ora, Counts per Second (CPS), Counts per minute (CPM), and Calculation of Accumulated Dose in µSievertsType of probe used for detecting radioactivity: – Tubo geiger made in USA Pancake ultra sensibile, model: LND-7317, with rear cladding made of thick metal and large front window made of very thin mica. E’ filled with a mixture of noble gases + halogens. It is mounted internally to the same instrument with a sensitive part “vista”. therefore it can easily detect alpha+beta+gamma nuclear radiation and X-rays.Technical data of the probe – typical sensitivity (Co60): 3600CPM / (mR / h) – typical sensitivity (CS137): 3450CPM / (mR / h) – Operating temperature – 20° + 60° C – Geiger tube supply voltage: 500V – Circular mica window with 45mm diameterDose rate sensitivity (uSV): – circa 400 impulsi/min per 1 µSv/h rif.CS-137Tipi di raggi rilevati – 2.5 MeV alpha radiation, – Beta da 150 keV e Gamma: da 10 keVEfficiency With 4 pi. angle (in contact)– Alpha radiation – Am-241 5.5 MeV circa 18%– Beta radiation – C-14 49 keV avg. 156 keV max. 5.0% – Bi-210 390 keV avg. 1.2 MeV max. 30-32% – Sr-90 546 keV and 2.3 MeV 35-38% – P-32 693 keV avg. 1.7 MeV max. 35Measurement scale: – Measurement scale calibrated from 0.01 µSv/h a 2000.00 µSv/hEquivalent dose measurement: – For its measurement, the exclusive detection of Beta and Gamma rays is assumed, therefore the ratio 1 is assumed:1, tra Gray / Sievert, that is to say: 1 gray = 1 sievert – Dose measurement scale: and 0.01 µSv a circa 530.00 µSvRadioactivity measurement method: – standard with automatic setting of the sampling time within a range of 2-4-10-20-30 seconds, which adjusts based on the intensity of the radiation detected.– Single measurement or averaged between all acquired values.– Scaler: High precision measurement mode, which provides a fixed sampling time that can be set from a minimum of 60 to a maximum of 10000 seconds, to be used to discriminate very low levels of radioactivity.– Histogram, that is, the tracing of the graph on the trend of radioactivity in real time.Calibration: – Guardian Ray Smart is subjected to various measurement tests under our supervision with calibrated radionuclides of the CO60 type – CS137 – SR90. Furthermore, upon request it can be supplied with a calibration certificate issued by an authorized SIT center of our trust.Memorization of Measurements: – The integrated datalogger allows measurements to be saved on a microSD with a maximum capacity of 32GB (not supplied), in practice it allows the data complete with acquisition date and time to be stored internally on the Card, stored in files compatible with the Microsoft Excel application and similar.Furthermore, the storage interval can be synchronized with the same radioactivity sampling times or set independently from 1 to 10 minutes., (provided that the sampling times themselves are not greater than the Max value. of this interval).Transfer of radioactivity data in real time to cloud servers: – It is possible to publish and view radioactivity measurements remotely in real time online by relying on clouds available online thanks to the instrument's wifi connectivityCPU processor): – MCU: ESP32 con 32Mb di RAM, Clock Frequency from 80 MHz to 240 MHz e WiFi Integratola CPU è dotata di interfaccia nativa USB 2.0 High-Speed integrata, furthermore it is mounted on a pressure base to allow any reprogramming or replacement with a similar one but reprogrammed with the updated firmware.

Diet, Autonomy and Consumption:– Powered by 3.7V lithium ion battery – 2600-3000mA/h – Continuous continuous operation autonomy with a full charge from the USB socket of approximately 6/8 hours – consumption of approximately 150-200mA (under conditions of normal use)Dimensions: – Length 200 mm, Minimum width: 75 mm, Max. Width: 97mm, max depth 50mmWeight: – About 500 gramsCasing: – Made of eco-friendly PLA by 3D printingProduct colours: (For current availability, ask us for confirmation) – Bianco – Giallo – Orange – VerdeCertifications: – supplied with EMC / RF certificate of conformity to CE regulations on electromagnetic interferenceRecycling: – The manufacturer can possibly collect the discarded product for disposal free of charge
