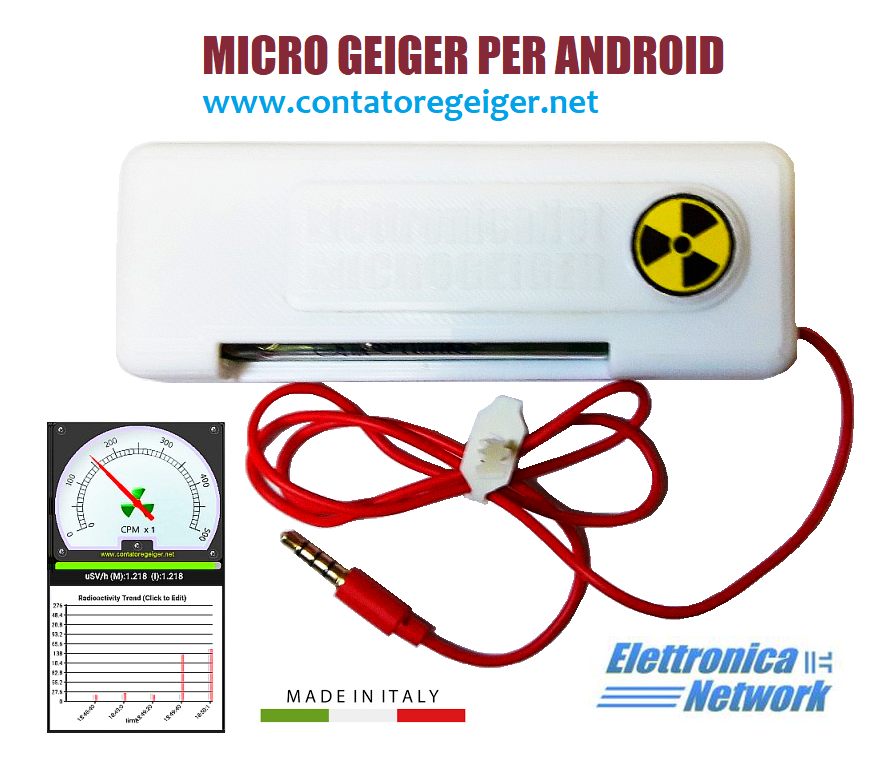

Micro Geiger – Contatore Geiger per Smartphone Android

What can this little Geiger Counter be used for? ?

Micro Geiger can be used connected to the Android smartphone to check the presence of ionizing radiation in the environment, in the ground, imported materials, waste, scrap metal, timber, pellett, vintage objects, building materials, like granite, flooring tiles, bricks, cement, pozzolana, tuff, and much more.

Who is recommended to purchase our Geiger Counter for Android?

It is recommended for schools to purchase for teaching purposes, to those who are interested in radioactivity in general, as well as professionals dealing with radiation protection. E’ useful for analysis and research laboratories, and to companies that import and process products from countries involved in nuclear accidents.

Who produces it, where it is manufactured and what guarantees are offered ?

Micro Geiger is entirely designed and built in Italy by the ElettronicaNetwork company. Therefore it is sold with the legal guarantee and direct technical support offered by the national manufacturer itself.

Micro geiger how to connect to Android smartphones ?

It works via the phone's headset socket and via our free Android APP, which includes many advanced functions to simplify and optimize radioactivity measurement.

Our Geiger Counter can measure activity and absorbed dose ?

Micro Geiger can show you real-time count value per minute (CPM) of the radioactive particles detected. Furthermore, the dose rate value in microSieverts/hour is automatically calculated.

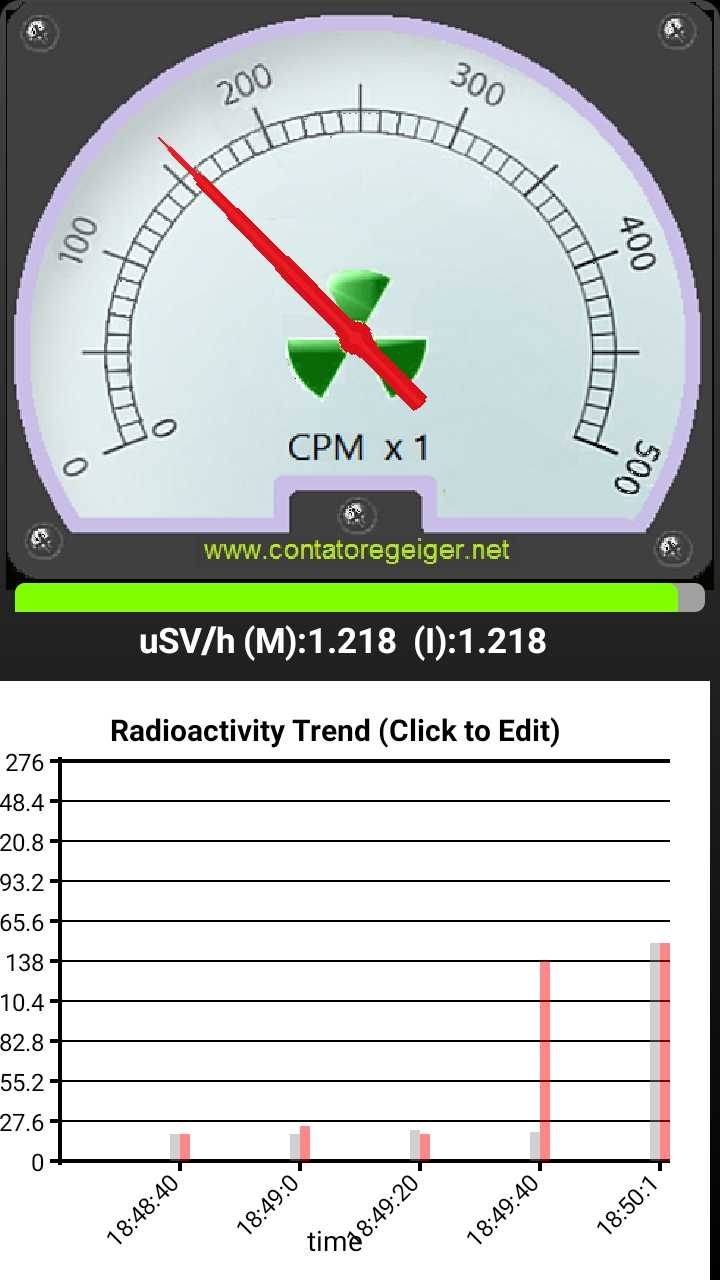

The measurements are shown at the same time via the Android application, both in numerical and analogue mode via an analogue pointer indicator. Furthermore, the instantaneous level is calculated at the same time, average and the trend graph on the trend of radioactivity in the time domain.



How Radioactivity is sampled ?

Radioactivity sampling times are carried out in automatic mode, it follows that the sensitivity and precision of the measurements are always very accurate. Therefore, even small levels of contamination can be discriminated both in the environment and on specific objects, with a maximum resolution of approximately 0.01 uSV/h.Micro Geiger for Android is powered by just two 1.5V micro-stylus batteries, and consumes very little, therefore the same batteries can last several months even in case of uninterrupted operation.

The Features of Micro Geiger the Geiger Counter for Android, Version 2.0

Instrument sensitivity: – 1080 Cpm /mR/hr and 123 pulses/minute for 1 µSv/h ambient – Types of ionizing radiation detected • Energetic Beta rays • Gamma rays: from 0.1 MeV and X-rays – Unit of measure: • µSv/h (microSievert/ora) e CPM (counts per minute) – Measurement scale calibrated from 0.01 µSv/h a circa 400.00 µSv/hMeasurement mode: – Instant, average of the values ​​acquired also with a graphic histogram in the time domain – Automatic sampling time autorange (20/10/5/2 seconds)Calibration: – Micro Geiger è sottoposto ad diversi test di misura sotto la nostra supervisione con radionuclidi precalibrati del tipo Cobalto 60 (CO60) – Cesium 137 (CS137) – Strontium 90 (SR90).Ticker: Ticker emulated via software in the mobile phone, emits a “beep” for each particle detectedCompatible smartphones: – All the latest generation Android smartphones (contact us for further information)Diet, Autonomy and Consumption: Uses 2 non-rechargeable 1.5V AAA mini alkaline batteries – 500/mA/h (included)Operating autonomy and consumption: – approximately 200/300 continuous hours in the presence of radioactivity values ​​of the natural background. – consumption: approximately 1.5/2 mA (under normal conditions of use)Dimensions and weight: – Length 120 mm, Width 42mm, Height 26mm, Peso 100gr (with batteries inserted)Casing: – Made of 100% biodegradable ECOLOGICAL PLA via 3D printing ( fears the heat)Colors: – Bianco – Giallo – OrangeCertifications: – Supplied with the EMC certificate of conformity to CE regulations on electromagnetic interferenceRecycling: – The manufacturer may eventually collect the decommissioned product for disposal

Quick instructions for installation and use

1. Download and read them installation notes of our Microgeiger App for Android

2. Enable in your settings. smartphone the installation of applications from unrecognized sources

3. Download it’ APP (apk) Microgeiger per Android for your mobile phone directly from your smartphone's navigator and start the installation by clicking on the download notification once it is finished.

4. Turn the appliance on by moving the slide microswitch lever to the ON position (that is, towards the longest side of the instrument)

5. Connect the instrument cable jack to the earphone jack of your smartphone ,

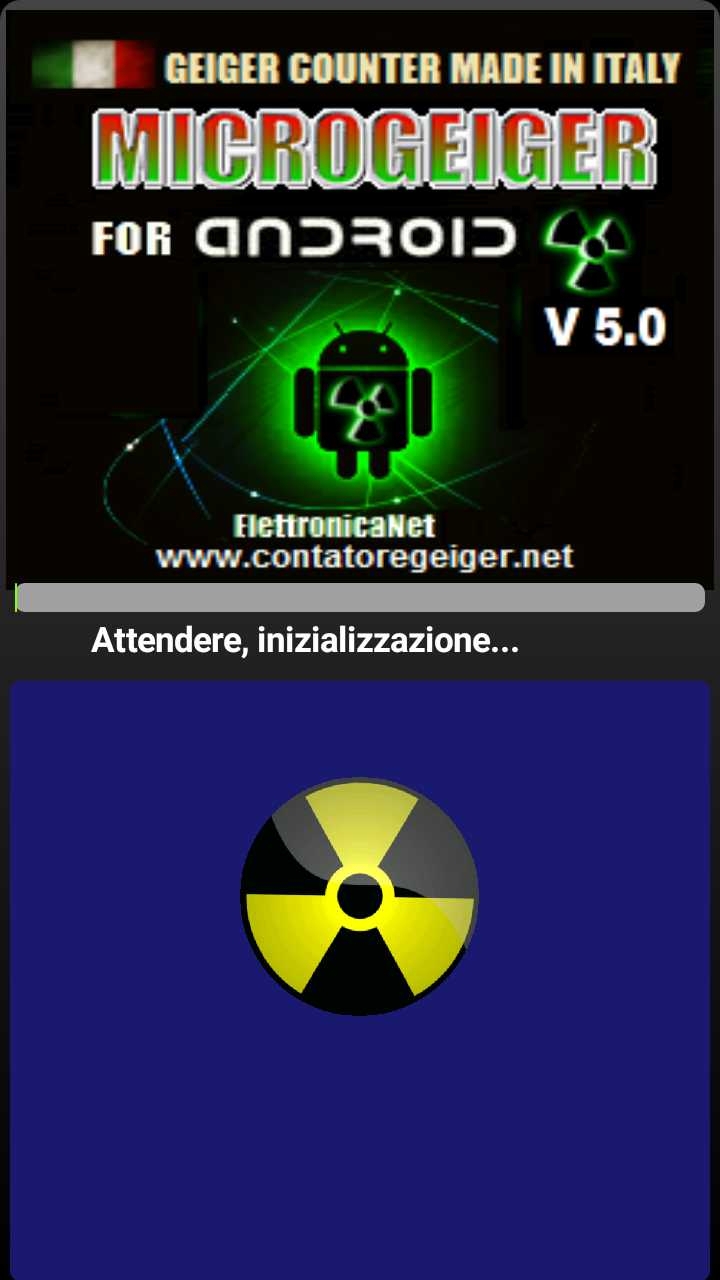

6. start the application on your mobile phone and wait for the measurements to initialise,

7. Now you are ready to analyze any material or more simply to measure the natural radioactivity basically
